JBT-10 Tractor Mounted Blast Hole Drilling Rig

JBT-10 Tractor Mounted Blast Hole Drilling Rig

1050000 INR/Unit
Get a Price/Quote

Product Details:

  • Condition New
  • Features Heavy duty
  • Material Mild Steel
  • Automatic Grade Semi-Automatic
  • CNC Or Not Normal
  • Voltage 220/440 Volt (v)
  • Color Blue
  • Click to View more
Request to Call Back Send Inquiry
X

JBT-10 Tractor Mounted Blast Hole Drilling Rig Price And Quantity

  • 1 Unit
  • 1050000 INR/Unit

JBT-10 Tractor Mounted Blast Hole Drilling Rig Product Specifications

  • Heavy duty
  • New
  • Blue
  • Normal
  • Semi-Automatic
  • 220/440 Volt (v)
  • Industrial
  • Mild Steel

JBT-10 Tractor Mounted Blast Hole Drilling Rig Trade Information

  • Cash in Advance (CID)
  • 500 Unit Per Month
  • 7 Days
  • All India

Product Description



The JBT-10 Tractor Mounted Blast Hole Drilling Rig is a robust, industrial-grade solution designed for heavy-duty drilling applications. Built from high-quality mild steel, this semi-automatic rig is designed to withstand tough industrial conditions while delivering exceptional performance. The striking blue design adds durability and aesthetic value to your industrial operations. Powered by a dual voltage system of 220/440 volts, the rig ensures efficient and reliable operation. Its tractor-mounted design offers flexibility and mobility, making it ideal for diverse drilling environments. With a normal CNC configuration, the JBT-10 provides precision and ease during blast hole drilling tasks. This rig is perfect for operations requiring strength, reliability, and adaptability in industrial settings. Whether youre looking to maximize efficiency or tackle challenging terrains, the JBT-10 is tailored to meet your needs.

TECHNICAL SPECIFICATIONS - JBT-10 TRACTOR MOUNTED BLAST HOLE DRILLING RIG
DRILLING DEPTHMaximum 4" Bore Holes, 80 Meter (262 Foot) by using 2" / 2 " Drill Rods
PRIME MOVERPower required for the rig hydraulic is drawn from the Hydraulic Power Pack attached with engine or tractor engine through the output PTO Shaft, Suitable Tractor 45 Hp and above
WORK METHODDTH Drilling
MAST5" Channel Structure Mast, Maximum Capacity 8 Tons, Height 2.75 Meter (9 Foot), Rod Handling 60", Centralized Opening 7"
PULL UP SPEED6.5 Meter / Min (22 Foot/Min)
PULL UP FORCE2700 Kg / 59400 lbs @140 Bar
PULL DOWN SPEED10.5 Meter / Min (34 Foot/Min)
PULL DOWN FORCE1600 Kg / 3520 lbs @ 140 Bar
HYDRAULIC SYSTEM140 Kg/cm (2000 psi)
REEVING RATIO1:2
ROTARY HEADMaximum Torque 146 Kg-Meter (12 740 lbs-inch)
ROTARY HEAD SPEED0 to 60 rpm
WATER INJECTION PUMP36 LPM, 40 Kg/cm water pump driven by hydraulic motor
OTHER OPTIONSThe same mast can be mounted on a small truck for easy approach to difficult site conditions. This can also be altered to drill horizontal bores up to 262 Foot
SUITABLE COMPRESSOR450 CFM/150 psi, 450 CFM/175 psi, 600 CFM/200 psi
LEVELLING JACKFour Hydraulic Leveling Jacks for accurate leveling of drill point, each having a separate lever



FAQs of JBT-10 Tractor Mounted Blast Hole Drilling Rig:


Q: What type of material is used in the construction of the JBT-10 Tractor Mounted Blast Hole Drilling Rig?

A: The rig is built using high-quality mild steel for durability and strength.

Q: What voltage configuration does the JBT-10 support?

A: The rig operates on a dual voltage system of 220/440 volts.

Q: Is the JBT-10 fully automatic?

A: No, it is semi-automatic, providing a balance of control and efficiency.

Q: What is the primary usage of the JBT-10 drilling rig?

A: It is designed for heavy-duty industrial applications, specifically for blast hole drilling tasks.

Q: Can the rig be used with CNC equipment?

A: The JBT-10 features a normal CNC configuration for precise and standardized drilling operations.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Mining And Drilling Rig' category

PORTABLE SEISMIC SHOT HOLE DRILLING RIG
Send Inquiry

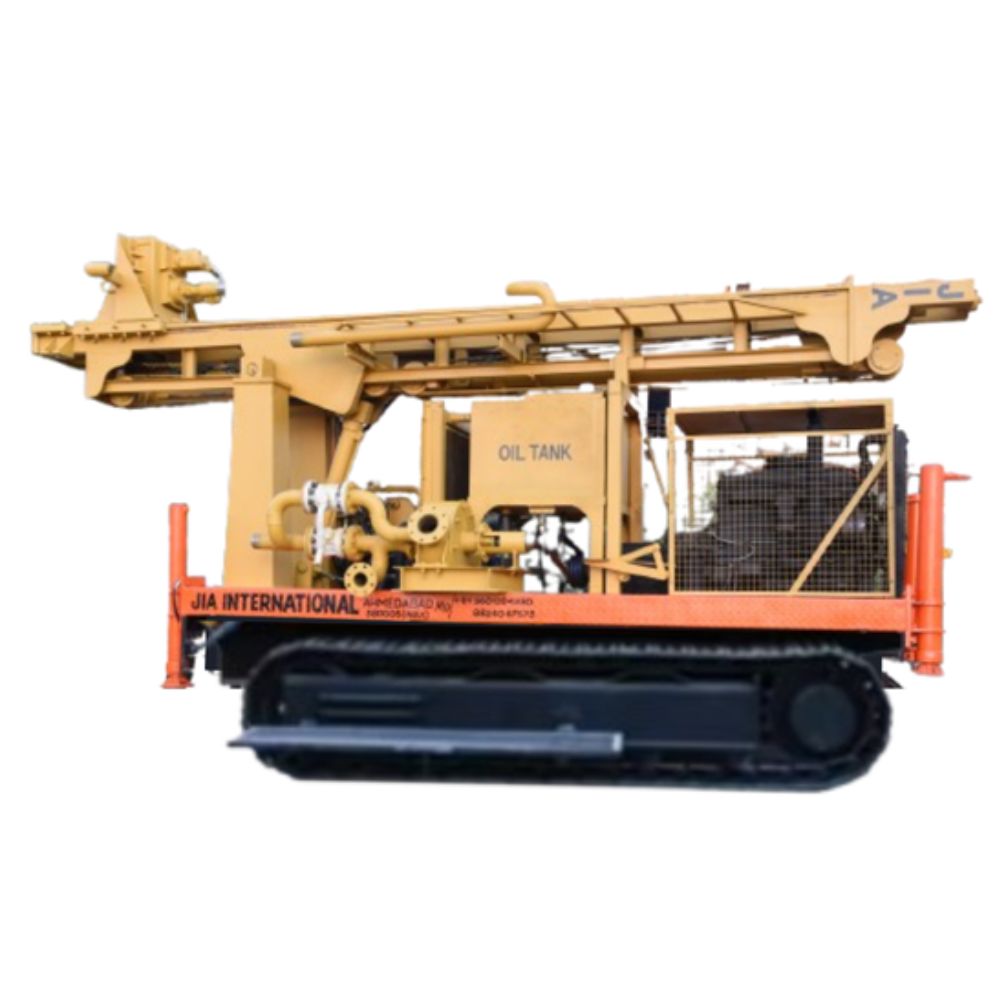

CRAWLER MOUNTED BLAST HOLE DRILLING RIG
