CRAWLER MOUNTED BLAST HOLE DRILLING RIG

CRAWLER MOUNTED BLAST HOLE DRILLING RIG

2500000.0 INR/Unit
Get a Price/Quote

Product Details:

  • Condition New
  • Features Heavy Duty
  • Material Mild Steel
  • Automatic Grade Semi-Automatic
  • CNC Or Not Normal
  • Color Yellow & Black
  • Usage & Applications Industrial
  • Click to View more
Request to Call Back Send Inquiry
X

CRAWLER MOUNTED BLAST HOLE DRILLING RIG Price And Quantity

  • 2500000.0 INR/Unit
  • 1 Unit

CRAWLER MOUNTED BLAST HOLE DRILLING RIG Product Specifications

  • New
  • Semi-Automatic
  • Industrial
  • Mild Steel
  • Normal
  • Heavy Duty
  • Yellow & Black

CRAWLER MOUNTED BLAST HOLE DRILLING RIG Trade Information

  • Cash in Advance (CID)
  • 500 Unit Per Month
  • 7 Days
  • All India

Product Description

We are offering highly robust and energy efficient CRAWLER MOUNTED BLAST HOLE DRILLING RIG that is in high demand in quarrying, construction, and mining applications to make drilled holes within hard rock for blasting purposes. It is designed and developed by our team of professional engineers using high performance fuel powered drives and heavy engineering materials that result in high working efficiency and robustness. This machine is capable to make holes within the range of 100 to 200 meters. The offered CRAWLER MOUNTED BLAST HOLE DRILLING RIG can be delivered to our clients with minimum order of 1 unit.

Specification

Drilling Depth

100-200 meters

Control Type

Hydraulic

Color

Any

Air Pressure Bar

200

Air Consumption Cfm

600

Work Pressure

210 Kg/Sq.cm

Frequency

Any

Engine Power

120 Hp

Bit Size

up to 6.5"

Milled Tooth

Any

Angle Drilling

Yes

Weight

5 Tons

Size

89 - 150

Rotary Head

100 RPM

Pull Up Speed

37 Meter/Min

Pull Up Force

9200 Kg

Model Name/Number

JBR-20

Oil Tank Capacity

350 Liters

Feed System

Hydraulic

Power

120 Hp

Mud Pump Flow

45 LPM

I Deal In

New Only

Capacity

200 Meter

Brand

JIA DRILLING

Automation Grade

Semi Automatic

Air Compressor

600 cfm - 200 psi

Drilling Rig Type

Land Based Drilling Rigs

Hole Diameter

100-200 mm

Usage/Application

Mining

Power Source

Hydraulic

TECHNICAL SPECIFICATIONS - JBR-20 CRAWLER MOUNTED BLAST HOLE DRILLING RIG
DRILLING DEPTH Maximum 4…›" Þ Bore Holes, 200 Meter (650 Foot) by using 2" / 2 Â" Drill Rods
Odex Dia. ˆ’ 5" to 8" ˆ’ 350 foot depth
PRIME MOVER Power required for the rig hydraulic is drawn from the crawler engine through the output PTO Shaft or from an extra deck engine.
WORK METHOD DTH Drilling
MAST 6" Channel Structure Mast, Height ˆ’ 5.5 Meter (18 Foot), Rod Handling ˆ’ 120", Centralized Opening ˆ’ 8"
PULL UP SPEED 37 Meter / Min (122 Foot/Min)
PULL UP FORCE 9,200 Kg / 20,240 lbs
PULL DOWN SPEED 55 Meter / Min (181 Foot/Min)
PULL DOWN FORCE 6,318 Kg / 13,900 lbs
HYDRAULIC SYSTEM 210 Kg/cm (3,000 psi)
Oil Tank ˆ’ 350 Liters, Oil Filters - SCÂ-100 - 01 no., SCÂ-75 ˆ’ 01 no.
Double super system
REEVING RATIO 1:3
ROTARY HEAD Maximum Torque 303 Kg-Meter (26,400 lbs-inch)
ROTARY HEAD SPEED 0 to 100 rpm
WATER INJECTION PUMP 36 LPM, 40 Kg/cm water pump driven by hydraulic motor
ADDITIONAL FEATURES Night Lights, Tool Box
SUITABLE COMPRESSOR 450 CFM/150 psi, 450 CFM/175 psi, 600 CFM/200 psi
AIR LINE LUBRICATOR Standard ˆ’ 3 Liters
LEVELLING JACK Four Hydraulic Leveling Jacks for accurate leveling of drill point, each having a separate lever
HYDRAULIC CYLINDERS Hydraulic Cylinders for Oscillation, Boom Raise, Boom Swing, Mast Raise, Mast Swing and Break Out Operation.



FAQs of CRAWLER MOUNTED BLAST HOLE DRILLING RIG:


Q: What type of automation does the Crawler Mounted Blast Hole Drilling Rig offer?

A: The Crawler Mounted Blast Hole Drilling Rig is Semi-Automatic.

Q: Is the drilling rig equipped with CNC functionality?

A: No, this drilling rig is categorized as Normal and does not feature CNC functionality.

Q: What material is used in the construction of the Crawler Mounted Blast Hole Drilling Rig?

A: The drilling rig is constructed using Mild Steel.

Q: What colors are available for this drilling rig?

A: The Crawler Mounted Blast Hole Drilling Rig comes in Yellow and Black colors.

Q: What are the primary usage and applications of this drilling rig?

A: The product is designed for Industrial use.

Q: What is the condition of the product when purchased?

A: The drilling rig is sold in New condition.

Q: Does the Crawler Mounted Blast Hole Drilling Rig have heavy-duty features?

A: Yes, the drilling rig is equipped with heavy-duty features.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Mining And Drilling Rig' category

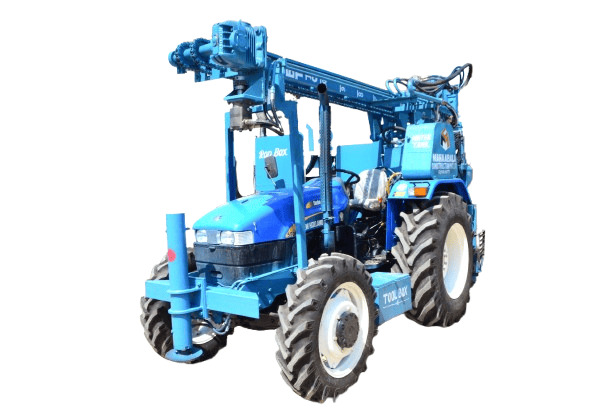

JBT-10 Tractor Mounted Blast Hole Drilling Rig
Send Inquiry

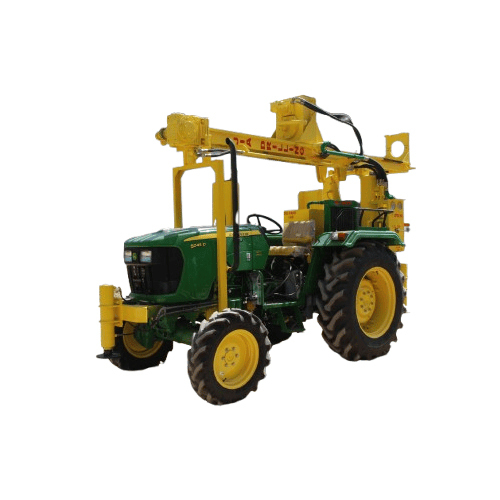

Tractor Mounted Seismic Shot Hole Drilling Rig
Send Inquiry

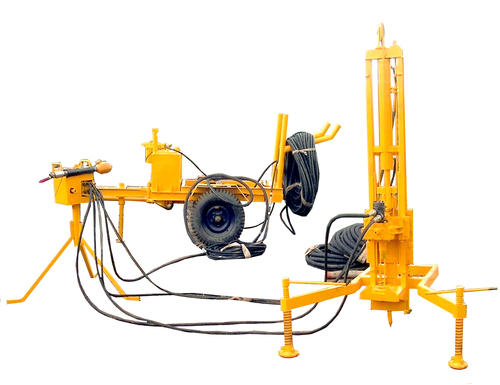

PORTABLE SEISMIC SHOT HOLE DRILLING RIG
