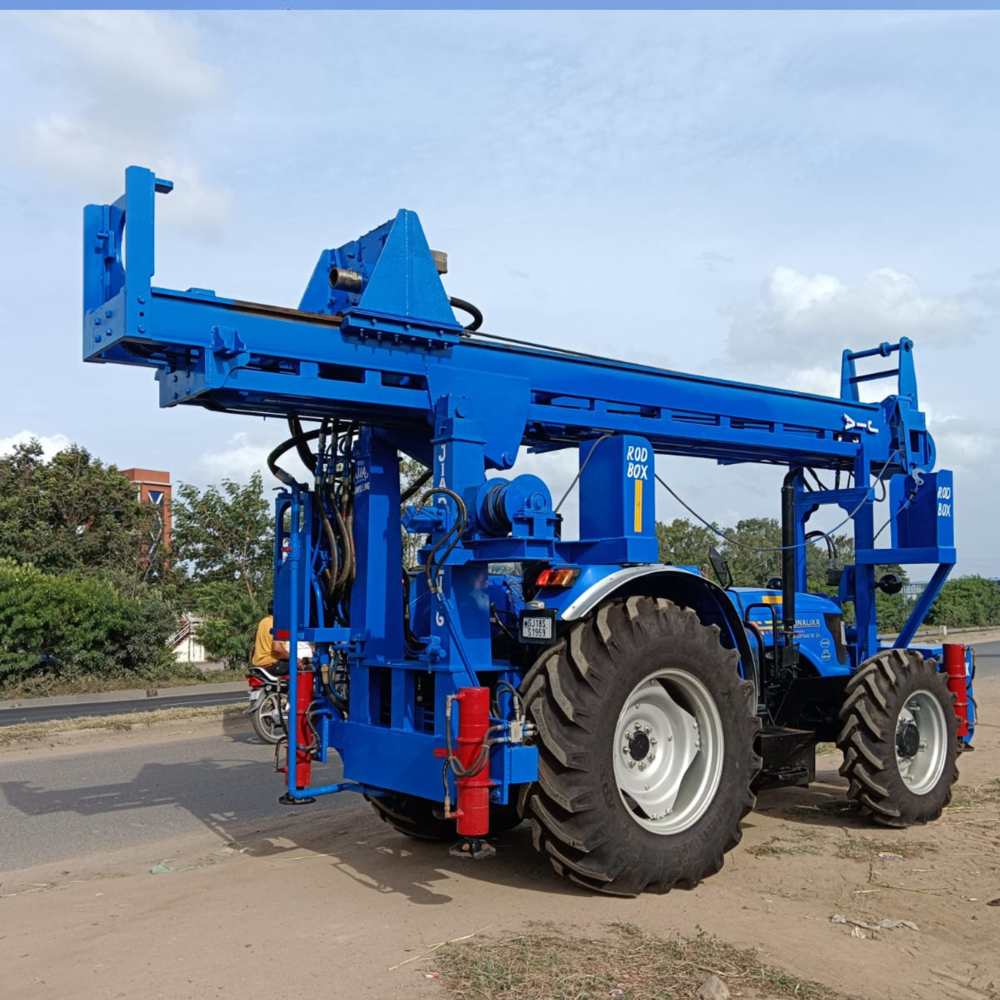

JWT-20 Tractor Mounted Dthr Water Well Drilling Rig
1350000.0 INR/Unit
Product Details:
- Features Heavy duty
- Condition New
- Material Mild Steel
- CNC Or Not Normal
- Color Blue
- Usage & Applications For Construction
- Click to View more
X
JWT-20 Tractor Mounted Dthr Water Well Drilling Rig Price And Quantity
- 1 Unit
- 1350000.0 INR/Unit
JWT-20 Tractor Mounted Dthr Water Well Drilling Rig Product Specifications
- For Construction
- New
- Mild Steel
- Heavy duty
- Normal
- Blue
JWT-20 Tractor Mounted Dthr Water Well Drilling Rig Trade Information
- Cash in Advance (CID)
- 500 Unit Per Month
- 7 Days
- All India
Product Description
The JWT-20 Tractor Mounted DTHR Water Well Drilling Rig is an essential heavy-duty machine designed to meet construction industry needs. Built from durable mild steel, it ensures long-lasting performance and reliability even under demanding conditions. Its striking blue finish highlights its robust construction. Specifically crafted for water well drilling, this rig offers unparalleled precision and efficiency. It operates on a normal CNC system, providing straightforward usability without compromising on accuracy. Ideal for both small-scale and large-scale construction projects, the JWT-20 guarantees optimum output. This rig is an excellent choice for exporters, manufacturers, and suppliers aiming for high-performance machinery in the water well drilling sector.
| DRILLING DEPTH | Maximum 6Â" Ø Bore Holes, 200 Meter (650 Foot) by using 3 Â" Drill Rods Odex Dia. ˆ’ 5" ˆ’ 400 foot depth |
| PRIME MOVER | Rig hydraulic system is powered from the tractor engine through the output PTO Shaft. ˆ’ Tractor Horse Power ˆ’ 90 Hp |
| WORK METHOD | DTH and Rotary Mud Drilling |
| MAST | 6" Channel Structure Mast, Height ˆ’ 5.5 Meter (18 Foot), Rod Handling ˆ’ 120", Centralized Opening ˆ’ 10…" (270 mm) |
| PULL UP SPEED | 37 Meter / Min (122 Foot/Min) |
| PULL UP FORCE | 7 900 Kg / 17 420 lbs |
| PULL DOWN SPEED | 50 Meter / Min (164 Foot/Min) |
| PULL DOWN FORCE | 5 400 Kg / 11 900 lbs |
| HYDRAULIC SYSTEM | 210 Kg/cm (3 000 psi) Oil Tank ˆ’ 350 Liters, Oil Filters - SCÂ-75 ˆ’ 02 no. Double super system |
| REEVING RATIO | 1:3 |
| ROTARY HEAD | Maximum Torque 303 Kg-Meter (26 400 lbs-inch), OMT-315 Orbital Motor |
| ROTARY HEAD SPEED | 0 to 100 rpm |
| WATER INJECTION PUMP | 36 LPM, 40 Kg/cm water pump driven by hydraulic motor |
| ADDITIONAL FEATURES | Night Lights, Tool Box |
| SUITABLE COMPRESSOR | 450 CFM/150 psi, 450 CFM/175 psi, 600 CFM/ 200 psi |
| AIR LINE LUBRICATOR | Standard ˆ’ 3 Liters |
| LEVELLING JACK | Four Hydraulic Leveling Jack for accurate leveling drill point having separate lever |
| BREAKOUT WRENCH | Hydraulic operated breakout wrench for fast breaking of rod joints |
| OPTIONAL ATTACHMENTS |
|
FAQs of JWT-20 Tractor Mounted Dthr Water Well Drilling Rig:
Q: What material is the JWT-20 Tractor Mounted DTHR Water Well Drilling Rig made of?
A: The rig is made from high-quality mild steel, ensuring durability and reliability.Q: What are the primary applications of this drilling rig?
A: The rig is primarily used for water well drilling in the construction industry.Q: What type of system does this drilling rig operate on?
A: It operates on a normal CNC system for ease and precision.Q: Is this drilling rig suitable for heavy-duty tasks?
A: Yes, it is designed as a heavy-duty machine for demanding construction applications.Q: What is the condition of the JWT-20 drilling rig?
A: The rig is brand new, ensuring optimal performance and reliability.Tell us about your requirement
