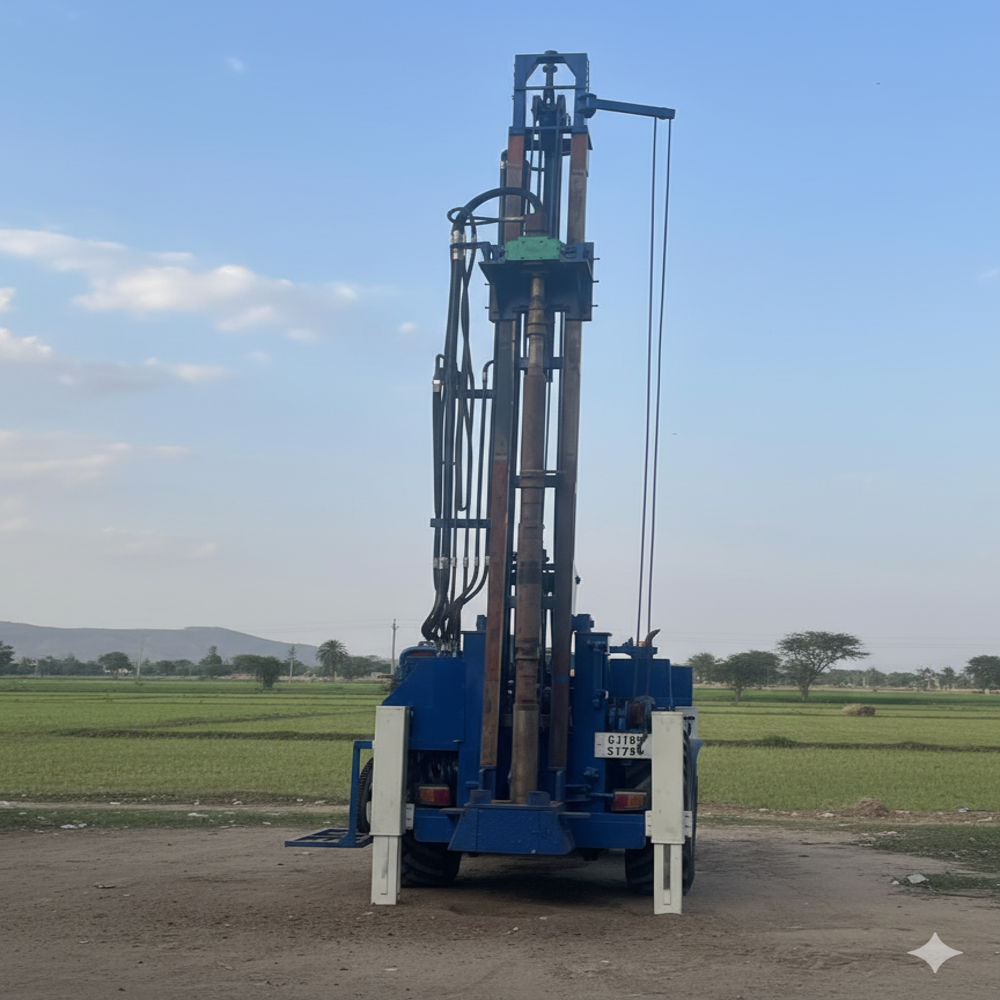

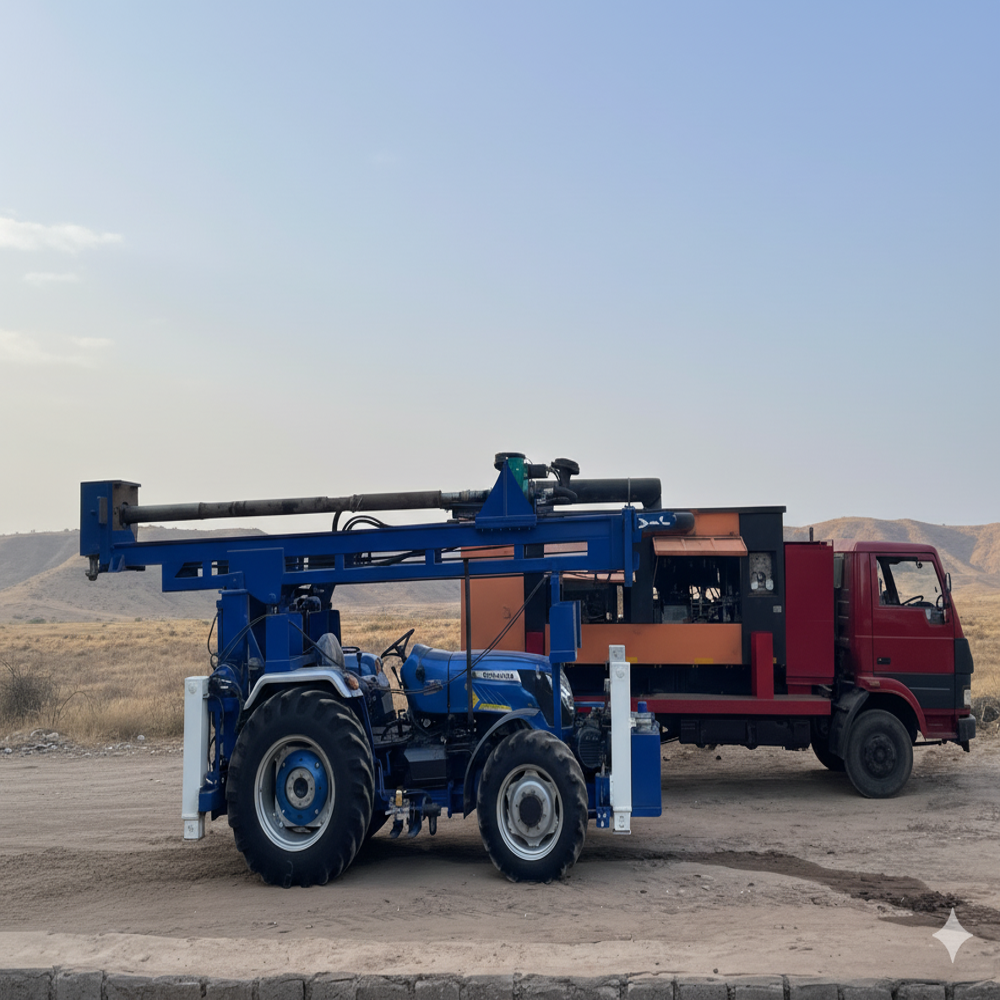

JWT-15 Tractor Mounted Dthr Water Well Drilling Rig
1250000.0 INR/Unit
Product Details:
- Condition New
- Features Heavy duty
- Material Mild Steel
- Automatic Grade Semi-Automatic
- CNC Or Not Normal
- Usage & Applications For Construction
- Click to View more
X
JWT-15 Tractor Mounted Dthr Water Well Drilling Rig Price And Quantity
- 1 Unit
- 1250000.0 INR/Unit
JWT-15 Tractor Mounted Dthr Water Well Drilling Rig Product Specifications
- Heavy duty
- Semi-Automatic
- Mild Steel
- For Construction
- Normal
- New
JWT-15 Tractor Mounted Dthr Water Well Drilling Rig Trade Information
- Cash in Advance (CID)
- 500 Unit Per Month
- 7 Days
- All India
Product Description
The JWT-15 Tractor Mounted DTHR Water Well Drilling Rig is a robust and efficient solution tailored for construction projects. Designed with heavy-duty capabilities, this rig ensures durability and performance under demanding conditions. It is semi-automatic in operation, enabling streamlined usage without compromising control. Built from high-quality mild steel, the rig embodies strength and reliability for prolonged service life. Its tractor-mounted design promotes mobile drilling, facilitating seamless transport across various terrains. Perfect for constructing water wells and other drilling applications, the JWT-15 combines advanced functionality with user-friendly adaptability, ensuring consistent results for professionals in the field.
| DRILLING DEPTH | Maximum 6Â" Bore Holes, 100 Meter (330 Foot) with 2Â" Drill Rods. Odex Dia ˆ’ 5", Depth ˆ’ 300 foot |
| PRIME MOVER | Rig hydraulic system powered from the deck engine ˆ’ 75 Hp |
| WORK METHOD | DTH and Rotary Mud Drilling |
| MAST | 5" Channel Structure Mast, Max Capacity ˆ’ 8 Tons, Height ˆ’ 3.65 Meter (12 Foot), Rod Handling ˆ’ 60", Centralized Opening ˆ’ 7" |
| PULL UP SPEED | 37 Meter / Min (122 Foot/Min) |
| PULL UP FORCE | 4 700 Kg / 10 360 lbs |
| PULL DOWN SPEED | 50 Meter / Min (164 Foot/Min) |
| PULL DOWN FORCE | 2 600 Kg / 5 732 lbs |
| HYDRAULIC SYSTEM | 210 Kg/cm (3 000 psi) Oil Tank ˆ’ 300 Liters, Oil Filters ˆ’ SCÂ-75 ˆ’ 02 no. |
| REEVING RATIO | 1:3 |
| ROTARY HEAD | Max Torque 303 Kg-Meter (26 400 lbs-inch), OMT-315 Orbital Motor |
| ROTARY HEAD SPEED | 0 to 100 rpm |
| WATER INJECTION PUMP | 36 LPM, 40 Kg/cmÂ, driven by hydraulic motor |
| ADDITIONAL FEATURES | Night Lights, Tool Box |
| SUITABLE COMPRESSOR | 450 CFM/150 psi, 450 CFM/175 psi, 600 CFM/200 psi |
| AIR LINE LUBRICATOR | Standard ˆ’ 3 Liters |
| LEVELLING JACK | Four Hydraulic Leveling Jacks with separate levers |
| BREAKOUT WRENCH | Hydraulic operated for fast rod joint release |
| OPTIONAL ATTACHMENTS |
|
FAQs of JWT-15 Tractor Mounted Dthr Water Well Drilling Rig:
Q: What material is the JWT-15 drilling rig made of?
A: The JWT-15 drilling rig is made of high-quality mild steel, ensuring strength and durability.Q: Is the JWT-15 tractor-mounted drilling rig automatic?
A: The rig operates with a semi-automatic grade, providing ease of use while maintaining control.Q: For what purpose is the JWT-15 drilling rig typically used?
A: The rig is primarily used for construction projects, including drilling water wells.Q: What type of operation conditions can the rig handle?
A: Thanks to its heavy-duty design, the rig is capable of handling demanding and tough operational conditions.Q: Does the rig support mobility?
A: Yes, being tractor-mounted, the JWT-15 offers easy transportation across various terrains.Tell us about your requirement
